DC DC CONVERTER 15V 9W

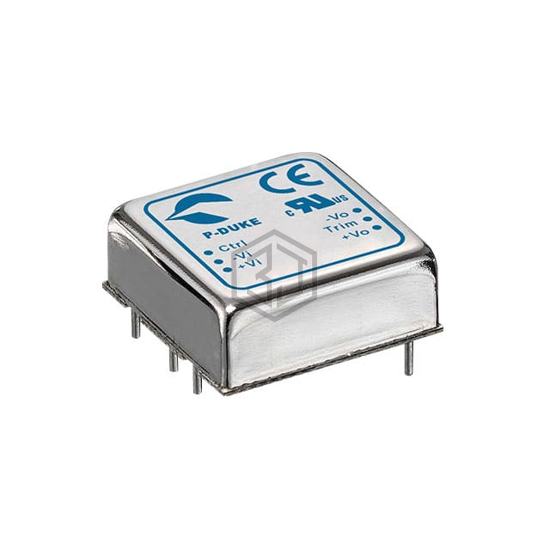

HSRP6-48S15 is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC DC CONVERTER 15V 9W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 3-SIP Module, current - output (max) 600mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 9 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 94% |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.47" L x 0.34" W x 0.53" H (12.0mm x 8.6mm x 13.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
