DC DC CONVERTER 24V 180W

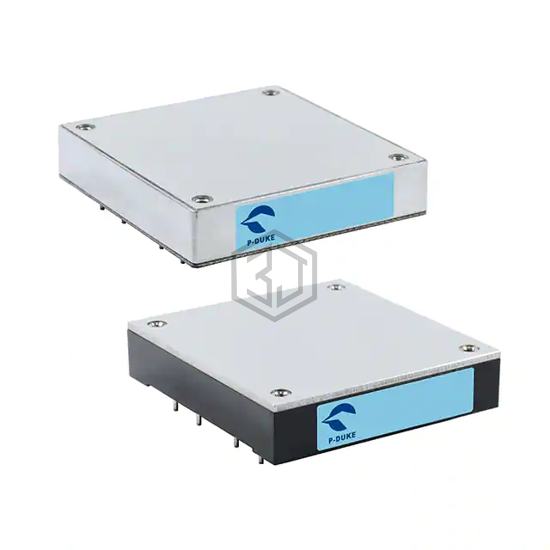

HAE200-12S24 is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC DC CONVERTER 24V 180W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 115°C (With Derating), package / case Half Brick, current - output (max) 7.5A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8.5V |
| Voltage - Input (Max) | 22V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7.5A |
| Power (Watts) | 180 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 115°C (With Derating) |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CB, CE, cURus |
| Standard Number | 60950-1 |
Submit your RFQ for HAE200-12S24 and get a quote within 24 hours.
