650V FS GEN3 TRENCH IGBT

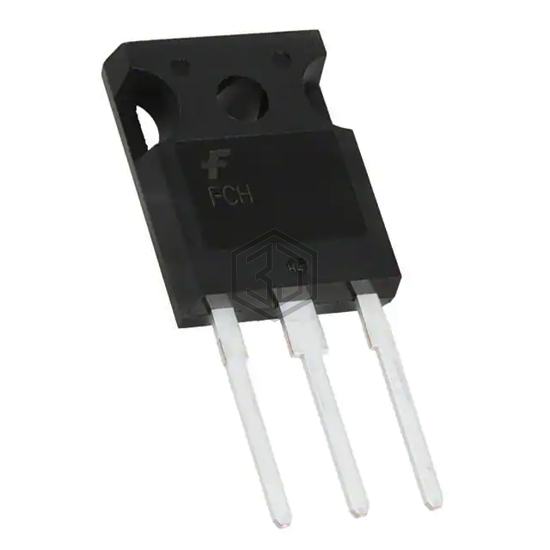

FGY160T65SPD-F085 is a Transistors - IGBTs - Single manufactured by onsemi. 650V FS GEN3 TRENCH IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 240 A.
In Stock: 887
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 240 A |
| Current - Collector Pulsed (Icm) | 480 A |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 160A |
| Power - Max | 882 W |
| Switching Energy | 12.4mJ (on), 5.7mJ (off) |
| Input Type | Standard |
| Gate Charge | - |
| Td (on/off) @ 25°C | 53ns/98ns |
| Test Condition | 400V, 160A, 15V |
| Reverse Recovery Time (trr) | 132 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
Submit your RFQ for FGY160T65SPD-F085 and get a quote within 24 hours.
