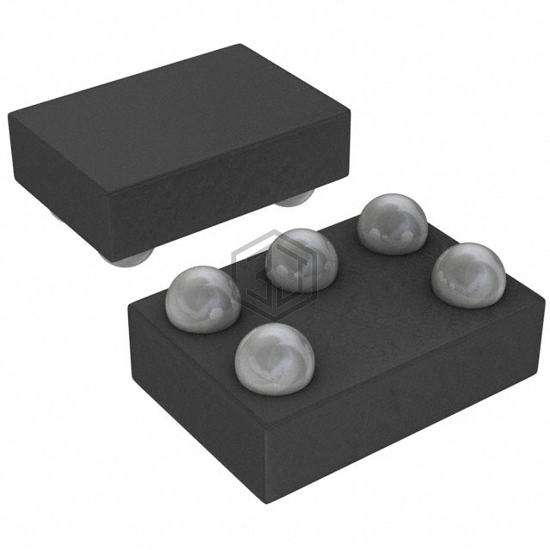

IC REG LINEAR 1.3V 350MA 5WLCSP
FAN2560UC13X_SN00140 is a PMIC - Voltage Regulators - Linear manufactured by onsemi. IC REG LINEAR 1.3V 350MA 5WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 5-UFBGA, WLCSP, current - supply (max) 70 µA.
In Stock: 7,553
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 350mA |
| Current - Output | 350mA |
| Current - Quiescent (Iq) | 11 µA |
| Current - Supply (Max) | 70 µA |
| PSRR | 50dB ~ 60dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit, Soft Start, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 5-UFBGA, WLCSP |
| Supplier Device Package | 5-WLCSP (0.96x1.33) |
FAN2560UC13X_SN00140 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TCR5AM10,LF | Toshiba Semiconductor and Storage | IC REG LINEAR 1V 500MA 5DFNB | 76% | View |
| TCR5AM085,LF | Toshiba Semiconductor and Storage | IC REG LINEAR 0.85V 500MA 5DFNB | 72% | View |
| LP5951MFX-1.8 | National Semiconductor | IC REG LINEAR 1.8V 150MA SOT23-5 | 66% | View |
| AP7345D-2518RH4-7 | Diodes Incorporated | IC REG LIN 2.5V/1.8V 300MA 8DFN | 60% | View |
| AP7345D-285285RH4-7 | Diodes Incorporated | IC REG LIN 2.85/2.85V 300MA 8DFN | 60% | View |
| AP7345D-3612RH4-7 | Diodes Incorporated | IC REG LIN 3.6V/1.2V 300MA 8DFN | 60% | View |
Submit your RFQ for FAN2560UC13X_SN00140 and get a quote within 24 hours.
