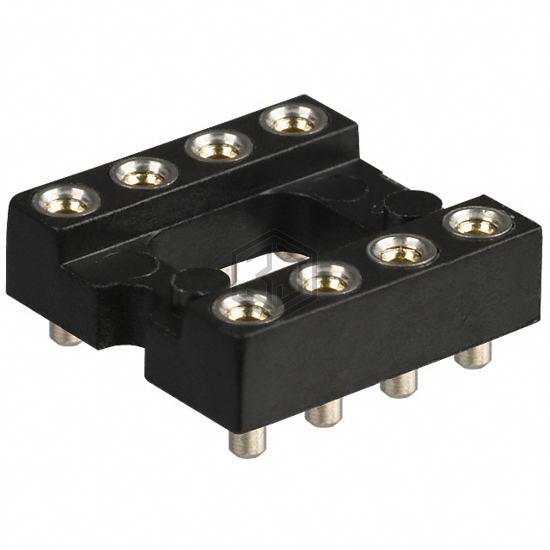

CONN IC DIP SOCKET 8POS GOLD
BU080Z-178-HT is a Sockets for ICs, Transistors manufactured by On Shore Technology Inc.. CONN IC DIP SOCKET 8POS GOLD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, housing material Polybutylene Terephthalate (PBT), Glass Filled, termination Solder.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 8 (2 x 4) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Surface Mount |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Copper |
| Contact Finish Thickness - Post | Flash |
| Contact Material - Post | Brass |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for BU080Z-178-HT and get a quote within 24 hours.
