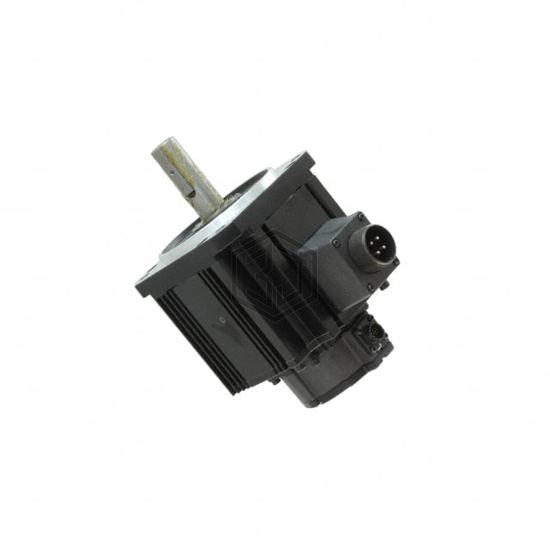

SERVOMOTOR 1000 RPM 400V
R88M-K90010F-S2 is a Motors - AC, DC manufactured by Omron Automation and Safety. SERVOMOTOR 1000 RPM 400V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 400VAC, size / dimension Square - 5.118" x 5.118" (130.00mm x 130.00mm), termination style Connector.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 400VAC |
| RPM | 1000 RPM |
| Torque - Rated (oz-in / mNm) | 1216 / 8590 |
| Power - Rated | 900W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 5.118" x 5.118" (130.00mm x 130.00mm) |
| Diameter - Shaft | 0.866" (22.00mm) |
| Length - Shaft and Bearing | 2.760" (70.00mm) |
| Mounting Hole Spacing | 5.709" (145.00mm) |
| Termination Style | Connector |
| Features | Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 2733 / 19300 |
| Operating Temperature | 0°C ~ 40°C |
