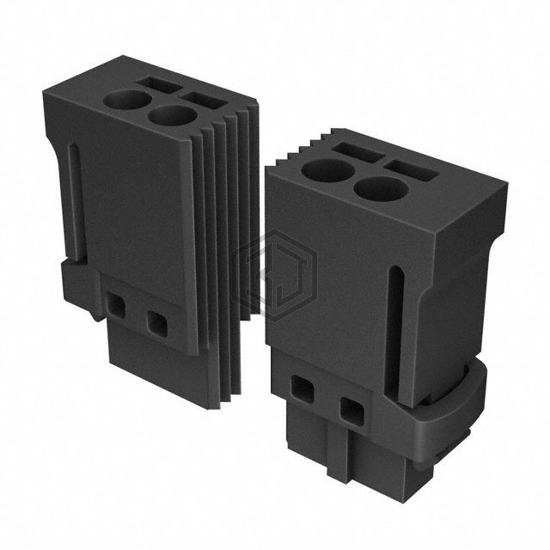

TERM BLOCK PLUG 8POS STR 2.54MM
XW4H-08A1 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Omron Electronics Inc-EMC Div. TERM BLOCK PLUG 8POS STR 2.54MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -45°C ~ 125°C, color Black, termination style Screwless - Leg Spring, Push-In Spring.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 8 |
| Positions Per Level | 8 |
| Number of Levels | 1 |
| Pitch | 0.100" (2.54mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 6 A |
| Voltage - UL | 160 V |
| Wire Gauge or Range - AWG | 20-26 AWG |
| Wire Gauge or Range - mm² | 0.14 ~ 0.5mm² |
| Color | Black |
| Operating Temperature | -45°C ~ 125°C |
| Contact Mating Finish | Tin |
| Features | Latch Lock |
Submit your RFQ for XW4H-08A1 and get a quote within 24 hours.
