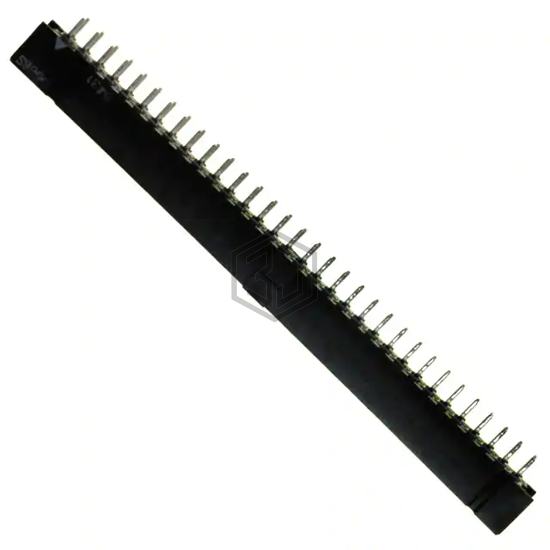

CONN RCPT 64POS 0.1 GOLD PCB
XG4H-6471 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Omron Electronics Inc-EMC Div. CONN RCPT 64POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 300VAC, current rating (amps) 3A.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 64 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Insulation Color | Black |
| Insulation Height | 0.283" (7.19mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 9.7mm, 10.1mm |
| Ingress Protection | - |
| Features | Polarizing Key |
| Current Rating (Amps) | 3A |
| Voltage Rating | 300VAC |
Submit your RFQ for XG4H-6471 and get a quote within 24 hours.
