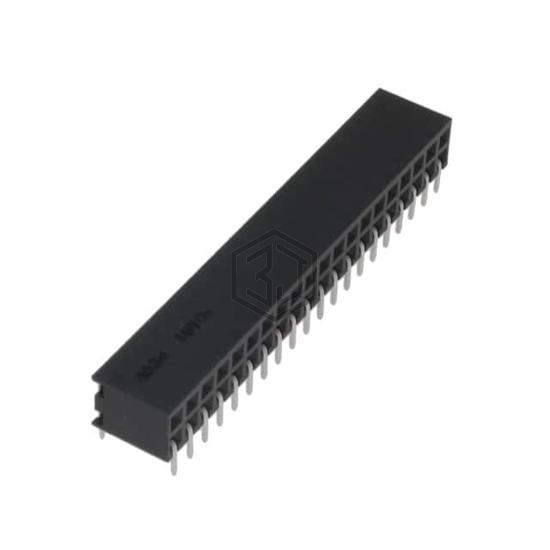

CONN RCPT 40POS 0.1 GOLD PCB R/A
XG4H-4034 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Omron Electronics Inc-EMC Div. CONN RCPT 40POS 0.1 GOLD PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 105°C, voltage rating 300VAC, current rating (amps) 3A.
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Insulation Color | Black |
| Insulation Height | 0.246" (6.25mm) |
| Contact Length - Post | 0.115" (2.92mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 300VAC |
Submit your RFQ for XG4H-4034 and get a quote within 24 hours.
