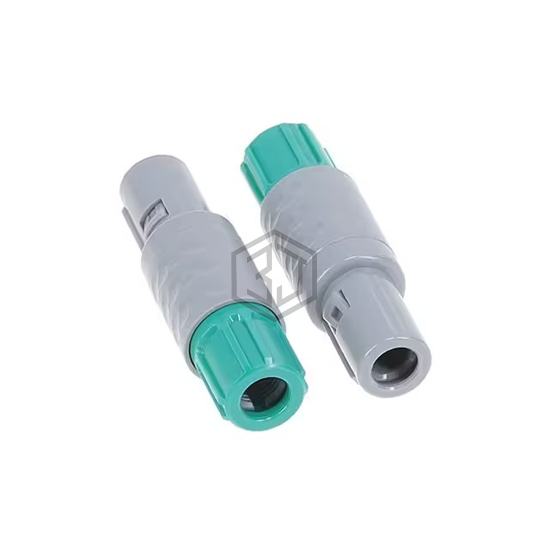

CONN PLUG MALE 2P GOLD SLDR CUP
S11MC7-P02MPH0-6550 is a Circular Connectors manufactured by ODU. CONN PLUG MALE 2P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -50°C ~ 120°C, color Gray, Green, termination Solder Cup.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 2 |
| Shell Size - Insert | 1 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | C |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Gray, Green |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Cable Opening | 0.209" ~ 0.256" (5.30mm ~ 6.50mm) |
| Operating Temperature | -50°C ~ 120°C |
Submit your RFQ for S11MC7-P02MPH0-6550 and get a quote within 24 hours.
