IC PWR SWITCH N-CHAN 1:1 SOT426

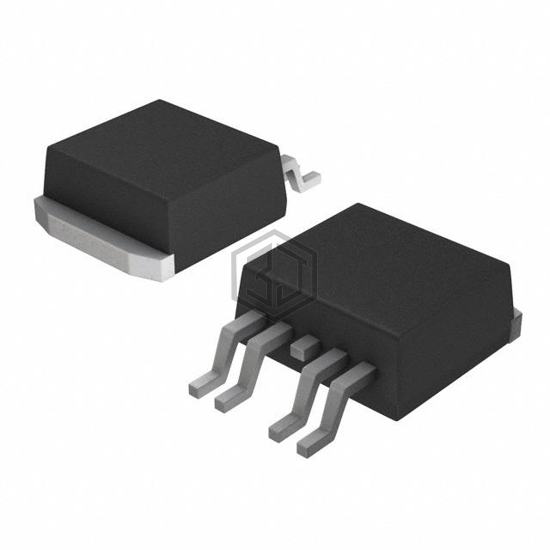

PIP3209-R,118 is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 SOT426. Key specifications: mounting type Surface Mount, voltage - supply (vcc/vdd) Not Required, package / case TO-263-5, D²Pak (4 Leads + Tab), TO-263BB, current - output (max) 6A.
In Stock: 8,465
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 35V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 135mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK |
| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB |
PIP3209-R,118 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VN750SM | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 8SO | 100% | View |
| VND830E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 88% | View |
| VND830E13TR | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 88% | View |
| VND830ASP-E | STMicroelectronics | IC PWR SSR HI SIDE N-CH PWRSO10 | 88% | View |
| VND830SP-E | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | 88% | View |
| VND830-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 16SO | 88% | View |
Submit your RFQ for PIP3209-R,118 and get a quote within 24 hours.
