FILTER RC(PI) 200 OHM/18.5PF SMD

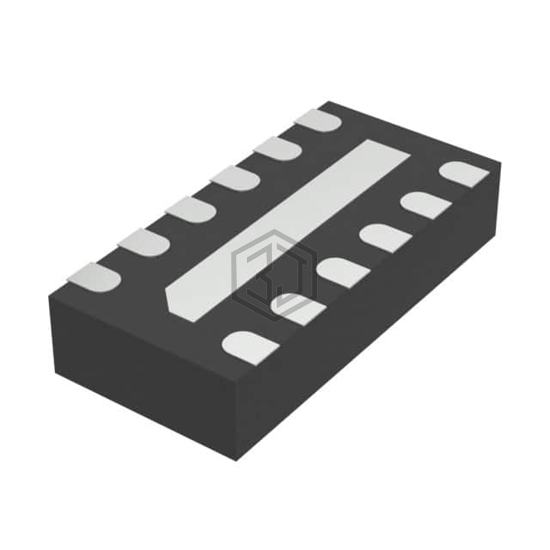

PEMI6QFN/WP,132 is a EMI/RFI Filters (LC, RC Networks) manufactured by NXP USA Inc.. FILTER RC(PI) 200 OHM/18.5PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 12-XFDFN, size / dimension 0.098" L x 0.047" W (2.50mm x 1.20mm).
In Stock: 20,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 800MHz ~ 3GHz |
| Resistance - Channel (Ohms) | 200 |
| Current | - |
| Values | R = 200Ohms, C = 18.5pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | LAN, PCS, WAN |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-XFDFN |
| Size / Dimension | 0.098" L x 0.047" W (2.50mm x 1.20mm) |
| Height | 0.020" (0.50mm) |
Submit your RFQ for PEMI6QFN/WP,132 and get a quote within 24 hours.
