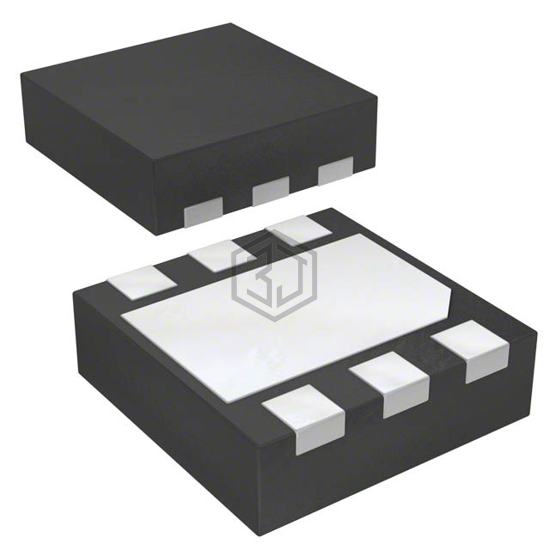

IC PWR SWITCH N-CHAN 1:1 6HXSON
NX5P2553GU6Z is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 6HXSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-XDFN Exposed Pad.
In Stock: 4,119
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A |
| Rds On (Typ) | 115mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-HXSON (2x2) |
| Package / Case | 6-XDFN Exposed Pad |
NX5P2553GU6Z is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS2068DGNR | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 8MSOP | 99% | View |
| PI5PD2065WEX | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8SOIC | 99% | View |
| PI5PD2061WEX | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8SOIC | 99% | View |
| AP2815CM-G1 | Diodes Incorporated | IC PWR SWITCH N-CHAN 1:1 8SOIC | 99% | View |
| RT9742KNGV | Richtek USA Inc. | IC PWR SWITCH N-CHAN 1:1 SOT23-3 | 99% | View |
| MIC2544-2BM-TR | Microchip Technology | IC PWR SWITCH N-CHAN 1:1 8SOIC | 99% | View |
Submit your RFQ for NX5P2553GU6Z and get a quote within 24 hours.
