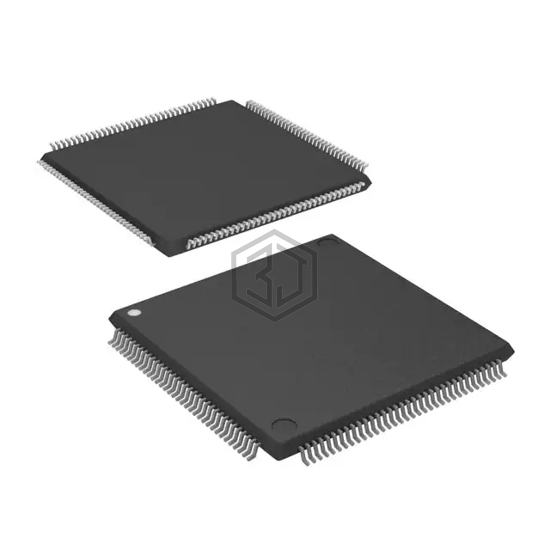

IC MCU 16BIT 512KB FLASH 144LQFP
MC9S12XHZ512CAG is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 512KB FLASH 144LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.5V, package / case 144-LQFP.
In Stock: 5,002
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI |
| Peripherals | LCD, Motor control PWM, POR, PWM, WDT |
| Number of I/O | 117 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Data Converters | A/D 16x8/10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20x20) |
MC9S12XHZ512CAG is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CY91F577BPMC-GSE2 | Infineon Technologies | IC MCU 32B 1.0625MB FLSH 144LQFP | 96% | View |
| MCF5281CVF80 | NXP USA Inc. | IC MCU 32B 256KB FLASH 256MAPBGA | 95% | View |
| UPD70F3558M1GMA-GBK-AX | Renesas Electronics Corporation | IC MCU 32BIT 2MB FLASH 176LQFP | 94% | View |
| LM3S5D51-IQC80-A1T | Texas Instruments | IC MCU 32BIT 512KB FLASH 100LQFP | 89% | View |
| CY91F522DSEPMC-GS-ERE2 | Infineon Technologies | IC MCU 32BIT 80LQFP | 88% | View |
| PIC32MK0512GPE064-E/MR | Microchip Technology | IC MCU 32BIT 512KB FLASH 64QFN | 87% | View |
Submit your RFQ for MC9S12XHZ512CAG and get a quote within 24 hours.
