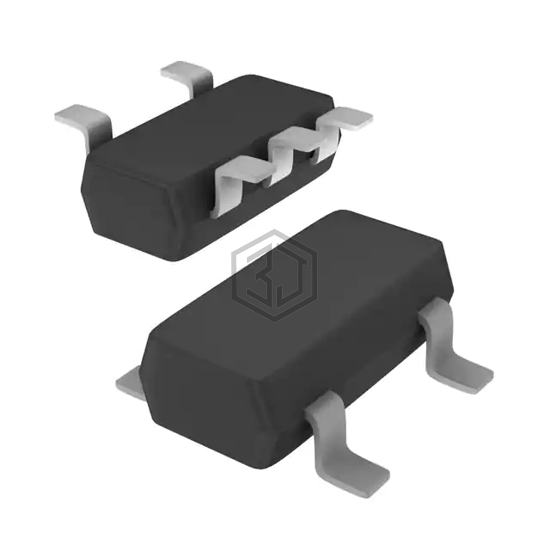

IC REG LINEAR 3.6V 150MA 5TSOP
LD6815TD/36P125 is a PMIC - Voltage Regulators - Linear manufactured by NXP USA Inc.. IC REG LINEAR 3.6V 150MA 5TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SC-74A, SOT-753, current - supply (max) 150 µA.
In Stock: 9,744
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA (Typ) |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 35 µA |
| Current - Supply (Max) | 150 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Transient Voltage |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | 5-TSOP |
LD6815TD/36P125 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC5253-2.6YC5-TR | Microchip Technology | IC REG LINEAR 2.6V 100MA SC70-5 | 77% | View |
| MIC5265-2.7YD5-TR | Microchip Technology | IC REG LIN 2.7V 150MA TSOT23-5 | 77% | View |
| MIC5264-PPYML-TR | Microchip Technology | IC REG LINEAR 3V/3V 10MLF | 76% | View |
| STLQ020PU28R | STMicroelectronics | IC REG LINEAR 2.8V 200MA 6DFN | 76% | View |
| STLQ020C28R | STMicroelectronics | IC REG LIN 2.8V 200MA SOT323-5 | 76% | View |
| MIC5265-1.85YD5-TR | Microchip Technology | IC REG LIN 1.85V 150MA TSOT23-5 | 66% | View |
Submit your RFQ for LD6815TD/36P125 and get a quote within 24 hours.
