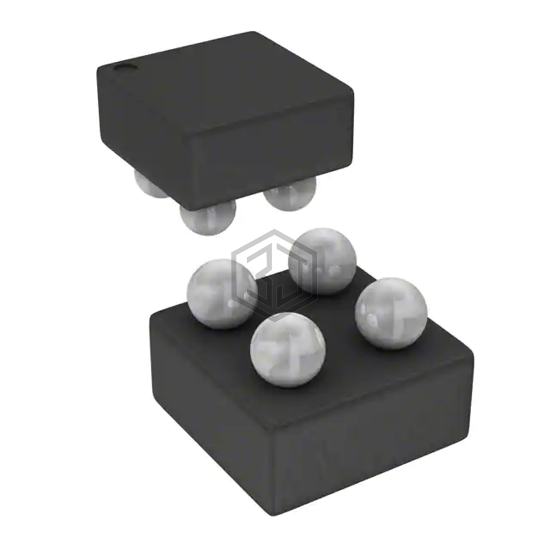

IC REG LINEAR 2.2V 200MA 4WLCSP
LD6806CX4/22P,315 is a PMIC - Voltage Regulators - Linear manufactured by NXP USA Inc.. IC REG LINEAR 2.2V 200MA 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XFBGA, WLCSP, current - supply (max) 250 µA.
In Stock: 27,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 250 µA |
| PSRR | 55dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.76x0.76) |
LD6806CX4/22P,315 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LD6806F/29H,115 | NXP USA Inc. | IC REG LINEAR 2.9V 200MA 6XSON | 90% | View |
| LD6836TD/21HH | NXP USA Inc. | IC REG LINEAR 2.1V 300MA 5TSOP | 89% | View |
| LD3985G25R | STMicroelectronics | IC REG LIN 2.5V 150MA TSOT23-5 | 87% | View |
| LP3985IM5X-285 | National Semiconductor | IC REG LINEAR FIXED POS LDO REG | 84% | View |
| LD3985J18R | STMicroelectronics | IC REG LIN 1.8V 150MA 5FLIPCHIP | 84% | View |
| LD6806F/36P,115 | NXP USA Inc. | IC REG LINEAR 3.6V 200MA 6XSON | 84% | View |
Submit your RFQ for LD6806CX4/22P,315 and get a quote within 24 hours.
