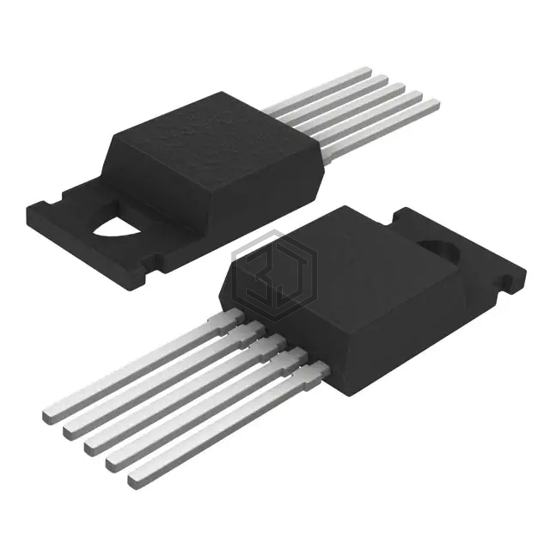

MOSFET N-CH 55V 75A TO220-5
BUK9907-55ATE,127 is a Transistors - FETs, MOSFETs - Single manufactured by NXP USA Inc.. MOSFET N-CH 55V 75A TO220-5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-5.
In Stock: 1,980
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.2mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 108 nC @ 5 V |
| Vgs (Max) | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 5836 pF @ 25 V |
| FET Feature | Temperature Sensing Diode |
| Power Dissipation (Max) | 272W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-5 |
| Package / Case | TO-220-5 |
Submit your RFQ for BUK9907-55ATE,127 and get a quote within 24 hours.
