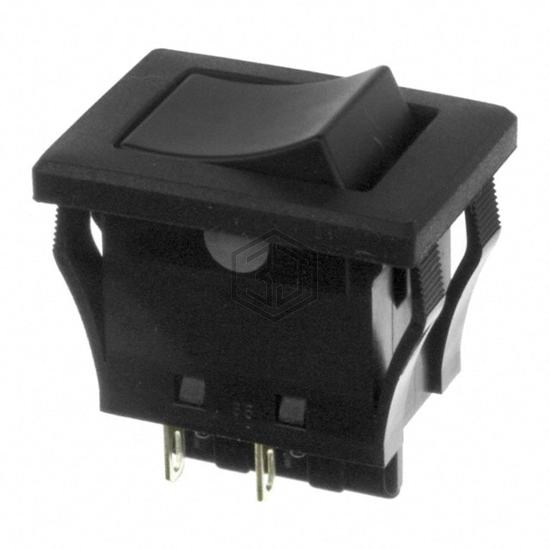

SWITCH ROCKER DPDT 10A 125V
JWMW22RAA is a Rocker Switches manufactured by NKK Switches. SWITCH ROCKER DPDT 10A 125V. Key specifications: mounting type Panel Mount, Snap-In, operating temperature -25°C ~ 85°C, voltage rating - dc 30 V, current rating (amps) 10A (AC/DC).
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Snap-In |
| Circuit | DPDT |
| Switch Function | On-On |
| Current Rating (Amps) | 10A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Actuator Type | Concave (Curved) |
| Color - Actuator/Cap | Black |
| Actuator Marking | No Marking |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Rectangular - 25.00mm x 15.40mm |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for JWMW22RAA and get a quote within 24 hours.
