MOSFET DRIVE SWITCHING REGULATOR

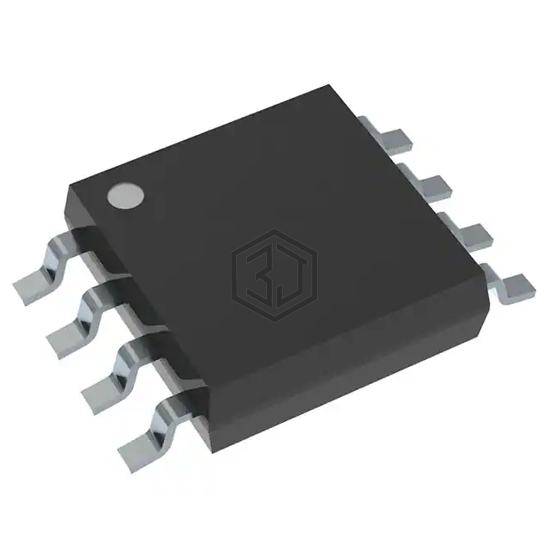

NJW4140M-TE1 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Nisshinbo Micro Devices Inc.. MOSFET DRIVE SWITCHING REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.197", 5.00mm Width), current - output 700mA.
In Stock: 4,335
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 40V |
| Current - Output | 700mA |
| Frequency - Switching | 40kHz ~ 1MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.197", 5.00mm Width) |
| Supplier Device Package | 8-DMP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NJW4140RT1-TE2 | Nisshinbo Micro Devices Inc. | MOSFET DRIVE SWITCHING REGULATOR | 100% | View |
| NJW4140RZ2-TE1 | Nisshinbo Micro Devices Inc. | MOSFET DRIVE SWITCHING REGULATOR | 100% | View |
| NJW4142R-TE1 | Nisshinbo Micro Devices Inc. | SWITCHING REG BOOST / FLY-BACK | 91% | View |
| NJW4142RT1-TE1 | Nisshinbo Micro Devices Inc. | IC REG BOOST FLYBACK ADJ 10MSOP | 74% | View |
| LM5157RTER | Texas Instruments | 6A/4A, 50-V, 2.2-MHZ WIDE VIN BO | 51% | View |
| LM51571RTER | Texas Instruments | 6A/4A, 50-V, 2.2-MHZ WIDE VIN BO | 51% | View |
Submit your RFQ for NJW4140M-TE1 and get a quote within 24 hours.
