IC REG CTRLR MULT TOPOLOGY 16DMP

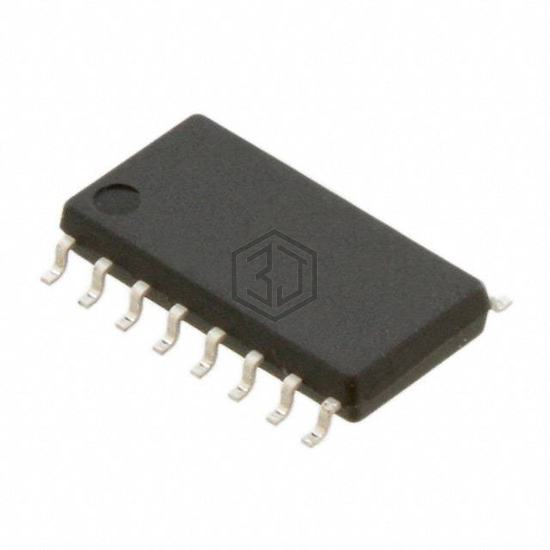

NJM3524M# is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Nisshinbo Micro Devices Inc.. IC REG CTRLR MULT TOPOLOGY 16DMP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), voltage - supply (vcc/vdd) 8V ~ 40V, package / case 16-SOIC (0.209", 5.30mm Width).
In Stock: 4,492
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Buck, Boost, Flyback, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| Frequency - Switching | 30kHz |
| Duty Cycle (Max) | 45% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-DMP |
NJM3524M# is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SIP2801DY-T1-E3 | Vishay Siliconix | IC REG CTRLR MULT TOPOLOGY 8SOIC | 74% | View |
| SIP2800DY-T1-E3 | Vishay Siliconix | IC REG CTRLR MULT TOPOLOGY 8SOIC | 73% | View |
| TL1454ACNSR | Texas Instruments | IC REG CTRLR BUCK/BST/FLYBK 16SO | 70% | View |
| TL1454ACPWR | Texas Instruments | IC REG CTRLR MULT TOP 16TSSOP | 70% | View |
| TL1454ACDBR | Texas Instruments | IC REG CTRLR MULT TOP 16SSOP | 70% | View |
| TL1454ACPW | Texas Instruments | IC REG CTRLR MULT TOP 16TSSOP | 70% | View |
Submit your RFQ for NJM3524M# and get a quote within 24 hours.
