CAP ALUM 100UF 20% 4V SMD

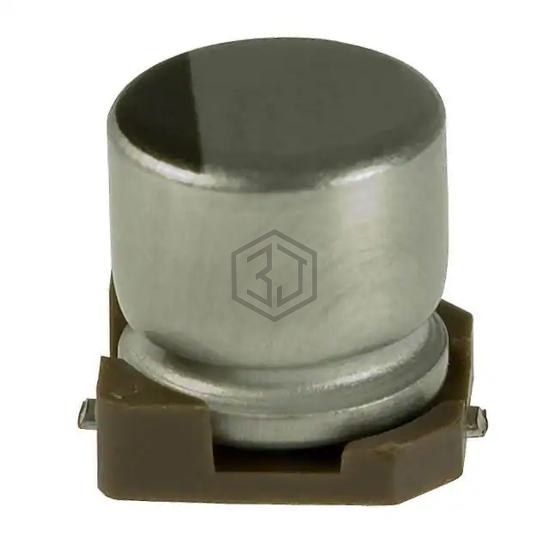

UWX0G101MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 3,176
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 56 mA @ 120 Hz |
| Ripple Current @ High Frequency | 84 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for UWX0G101MCL1GB and get a quote within 24 hours.
