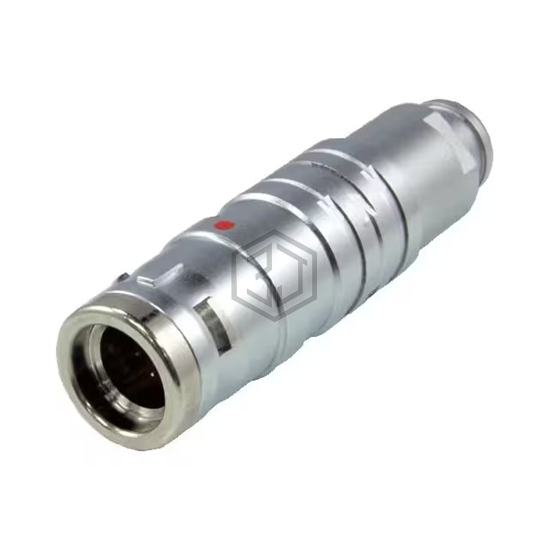

0K, STRAIGHT PLUG, 6PIN, IP68
R-F0KS0602C1030 is a Circular Connectors manufactured by Nextron. 0K, STRAIGHT PLUG, 6PIN, IP68. Key specifications: mounting type Free Hanging (In-Line), operating temperature -55°C ~ 200°C, color Silver, current rating (amps) 2.5A.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 6 |
| Shell Size - Insert | 0K |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull, Detent Lock |
| Orientation | 0° |
| Primary Material | Metal |
| Shell Material | Copper Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 2.5A |
| Voltage Rating | - |
| Cable Opening | 0.102" ~ 0.118" (2.60mm ~ 3.00mm) |
| Operating Temperature | -55°C ~ 200°C |
Submit your RFQ for R-F0KS0602C1030 and get a quote within 24 hours.
