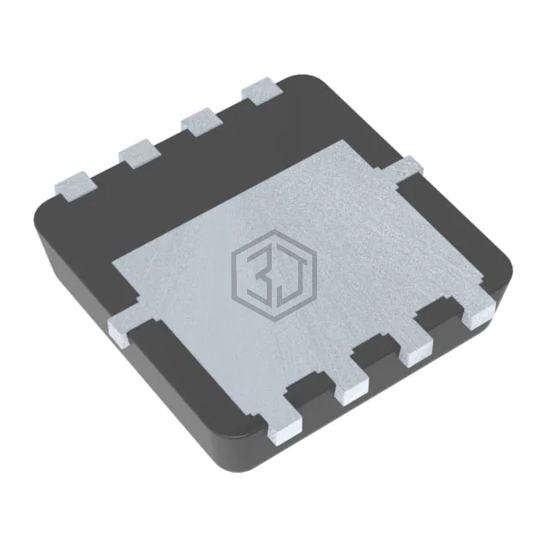

PXP011-20QX/SOT8002/MLPAK33
PXP011-20QXJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PXP011-20QX/SOT8002/MLPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Ta), 56.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 11.4mOhm @ 10.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.25V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 65.1 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 4200 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta), 50W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | MLPAK33 |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for PXP011-20QXJ and get a quote within 24 hours.
