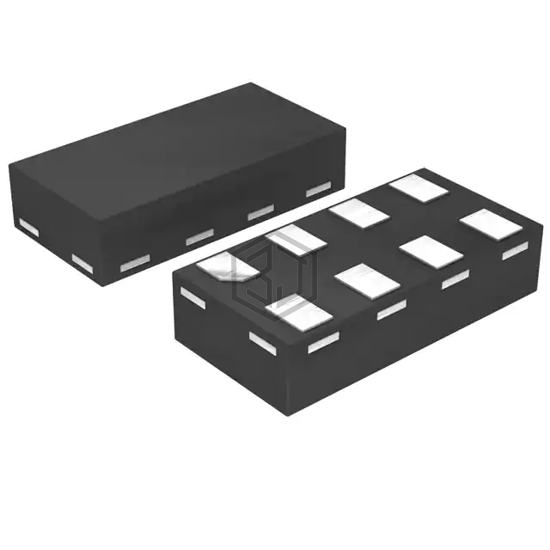

IC INVERT SCHMITT 3CH 3-IN 8XSON
74AHC3G14GD-Q100H is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC INVERT SCHMITT 3CH 3-IN 8XSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 8-XFDFN.
In Stock: 1,055
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V |
| Logic Level - High | 2.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-XSON (2x3) |
| Package / Case | 8-XFDFN |
74AHC3G14GD-Q100H is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLU2G14CMX1TCG | onsemi | IC INVERT SCHMITT 2CH 2IN 6ULLGA | 90% | View |
| MC74VHC1G14DBVT1G | onsemi | IC INVERT SCHMITT 1CH 1-IN SC74A | 83% | View |
| MC74VHC1G14DFT1 | onsemi | IC INVERTER SGL SCHMITT SOT353 | 83% | View |
| M74VHC1GT14DFT2G-L22038 | onsemi | IC INVERT SCHMITT 1CH 1INP SC88A | 83% | View |
| 74VHCT04AFT | Toshiba Semiconductor and Storage | IC INVERTER 6CH 1-INP 14TSSOP | 71% | View |
| 74AHCT04T14-13 | Diodes Incorporated | IC INVERTER 6CH 1-INP 14TSSOP | 65% | View |
Submit your RFQ for 74AHC3G14GD-Q100H and get a quote within 24 hours.
