DC DC CONVERTER 1.2-6V

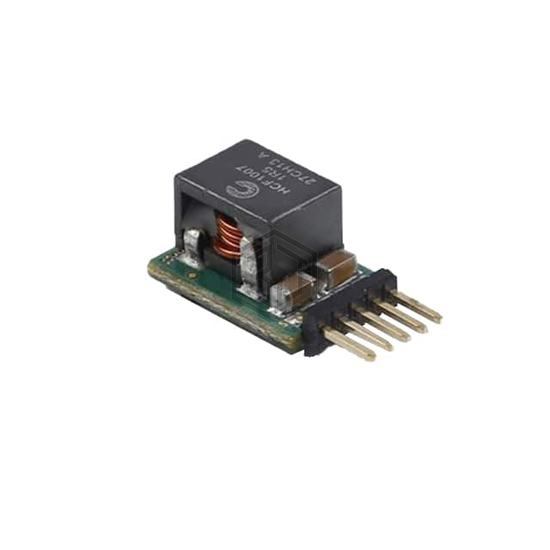

NRT1000P010T05 is a DC DC Converters manufactured by NetPower. DC DC CONVERTER 1.2-6V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 5-SIP Module, current - output (max) 10A.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 1.2 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Mounting Type | Through Hole |
| Package / Case | 5-SIP Module |
| Size / Dimension | 0.42" L x 0.66" W x 0.36" H (10.7mm x 16.8mm x 9.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for NRT1000P010T05 and get a quote within 24 hours.
