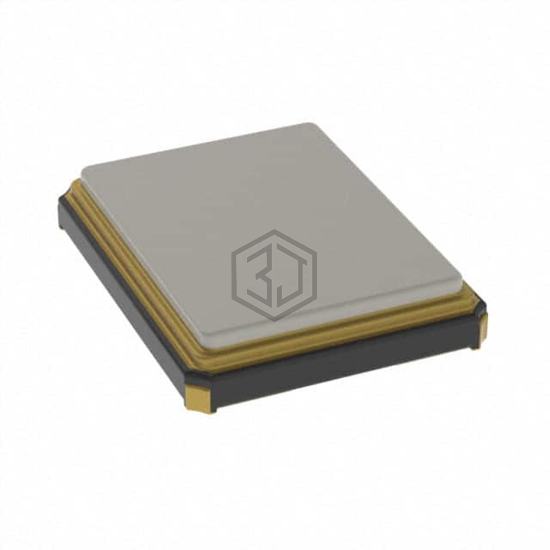

CRYSTAL 30.0000MHZ 8PF SMD
NX3225SA-30.000M-STD-CSR-3 is a Crystals manufactured by NDK America, Inc.. CRYSTAL 30.0000MHZ 8PF SMD. Key specifications: mounting type Surface Mount, operating temperature -10°C ~ 75°C, package / case 4-SMD, No Lead, size / dimension 0.126" L x 0.098" W (3.20mm x 2.50mm).
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | MHz Crystal |
| Frequency | 30 MHz |
| Frequency Stability | ±15ppm |
| Frequency Tolerance | ±15ppm |
| Load Capacitance | 8pF |
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -10°C ~ 75°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for NX3225SA-30.000M-STD-CSR-3 and get a quote within 24 hours.
