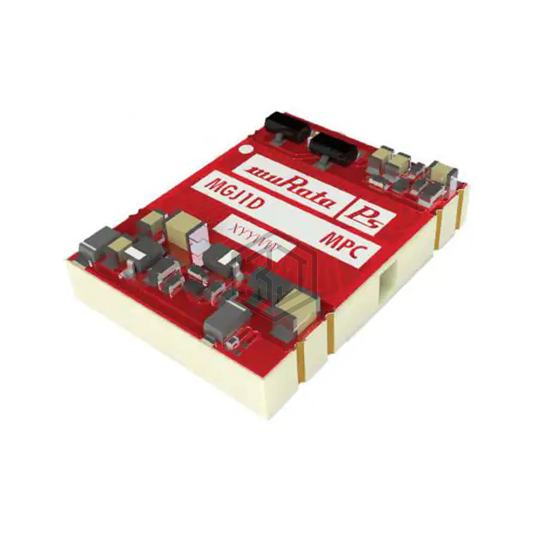

DC DC CONVERTER 15V -5V 1W
MGJ1D151505MPC-R7 is a DC DC Converters manufactured by Murata Power Solutions Inc.. DC DC CONVERTER 15V -5V 1W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (With Derating), package / case 8-SMD Module, current - output (max) 50mA, 50mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 50mA, 50mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 5.7 kV |
| Applications | ITE (Commercial) |
| Features | OTP, SCP |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 69% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module |
| Size / Dimension | 0.79" L x 0.59" W x 0.17" H (19.9mm x 15.0mm x 4.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for MGJ1D151505MPC-R7 and get a quote within 24 hours.
