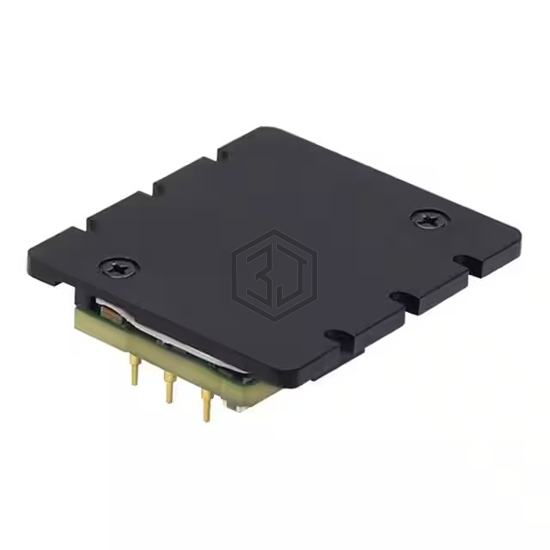

DC DC CONVERTER, 400W, 24V, ADDE
VCF4824QBO-400WFR3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER, 400W, 24V, ADDE. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case Quarter Brick, current - output (max) 16.5A.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 16.5A |
| Power (Watts) | 396 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 95% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.44" L x 2.20" W x 0.58" H (62.0mm x 56.0mm x 14.7mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for VCF4824QBO-400WFR3 and get a quote within 24 hours.
