DC DC CONVERTER 1.5V 750MW

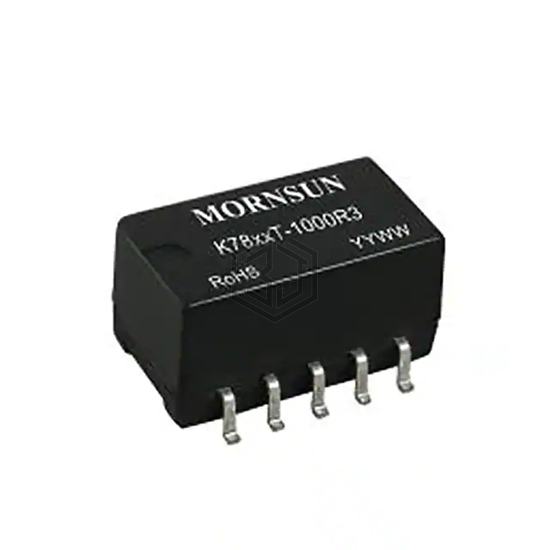

K7801T-500R3 is a DC DC Converters manufactured by Mornsun America, LLC. DC DC CONVERTER 1.5V 750MW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (With Derating), package / case 10-SMD Module, 8 Leads, current - output (max) 500mA.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Linear Regulator Replacement |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 28V |
| Voltage - Output 1 | 1.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 750 mW |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 76% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module, 8 Leads |
| Size / Dimension | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
