Mallory Sonalert Products Inc.

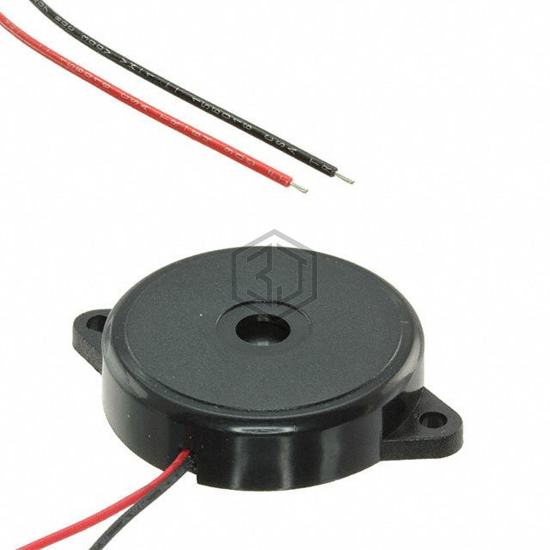

BUZZER PIEZO 5V 34.5MM FLANGE
PT-3110WQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 5V 34.5MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 90°C, voltage - rated 5 V, current - supply 2mA.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 3 ~ 30V |
| Frequency | 1.1kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Current - Supply | 2mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 90°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.358" Dia (34.50mm) |
| Height - Seated (Max) | 0.362" (9.20mm) |
