Mallory Sonalert Products Inc.

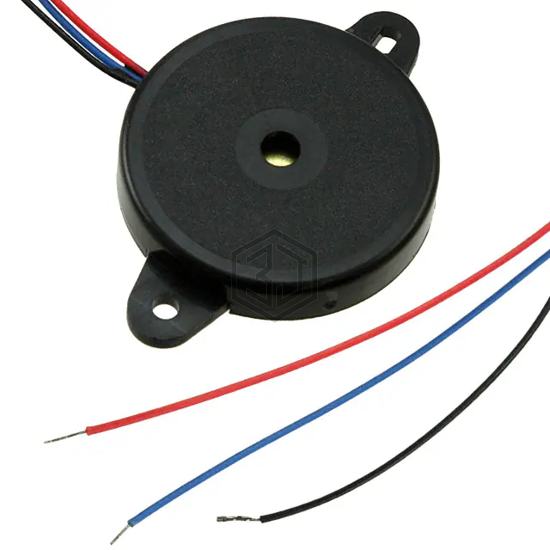

BUZZER PIEZO 12V 30MM FLANGE
PT-2736FWQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 30MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 70°C, voltage - rated 12 V, current - supply 8mA.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 28V |
| Frequency | 3.5kHz |
| Technology | Piezo (with Feedback) |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 12V, 30cm |
| Current - Supply | 8mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
Submit your RFQ for PT-2736FWQ and get a quote within 24 hours.
