Mallory Sonalert Products Inc.

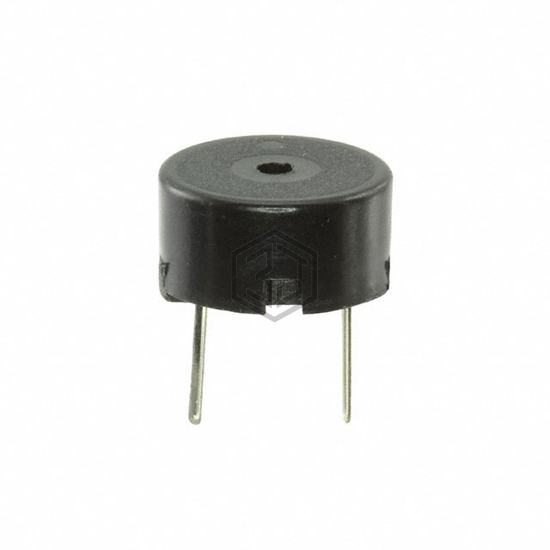

BUZZER PIEZO 12V 24MM FLANGE
PT-2130FWQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 24MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 90°C, voltage - rated 12 V, current - supply 12mA.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 1.5 ~ 30V |
| Frequency | 3kHz |
| Technology | Piezo (with Feedback) |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 80dB @ 12V, 30cm |
| Current - Supply | 12mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 90°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.382" (9.70mm) |
Submit your RFQ for PT-2130FWQ and get a quote within 24 hours.
