Mallory Sonalert Products Inc.

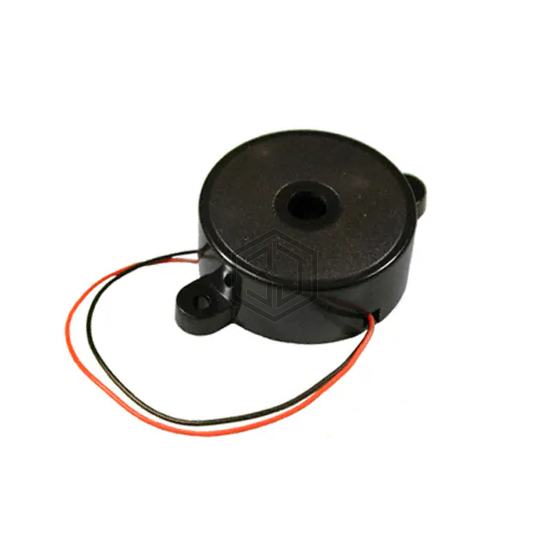

BUZZER PIEZO 5V 24MM FLANGE
PT-2060WQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 5V 24MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 70°C, voltage - rated 5 V, current - supply 1.5mA.
In Stock: 1,367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 1 ~ 30V |
| Frequency | 6kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 90dB @ 5V, 10cm |
| Current - Supply | 1.5mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
Submit your RFQ for PT-2060WQ and get a quote within 24 hours.
