Mallory Sonalert Products Inc.

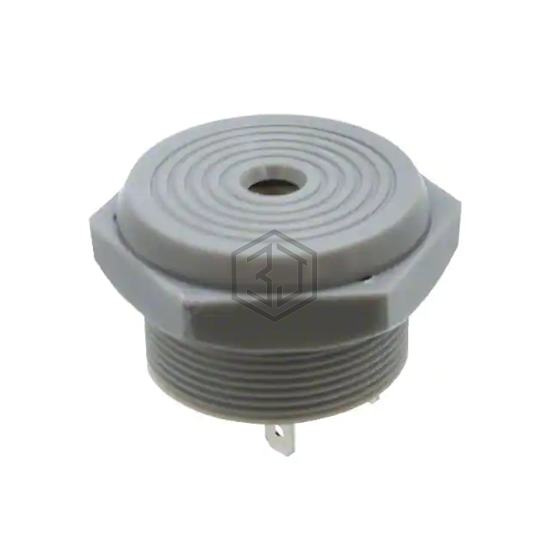

BUZZER PIEZO 12V 36.5MM PNL MNT
PK-27A35EPQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER PIEZO 12V 36.5MM PNL MNT. Key specifications: mounting type Panel Mount, operating temperature -20°C ~ 70°C, voltage - rated 12 V, current - supply 15mA.
In Stock: 335
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 24V |
| Frequency | 3.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 12V, 30cm |
| Current - Supply | 15mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) |
| Size / Dimension | 1.437" Dia (36.50mm) |
| Height - Seated (Max) | 0.933" (23.70mm) |
Submit your RFQ for PK-27A35EPQ and get a quote within 24 hours.
