Mallory Sonalert Products Inc.

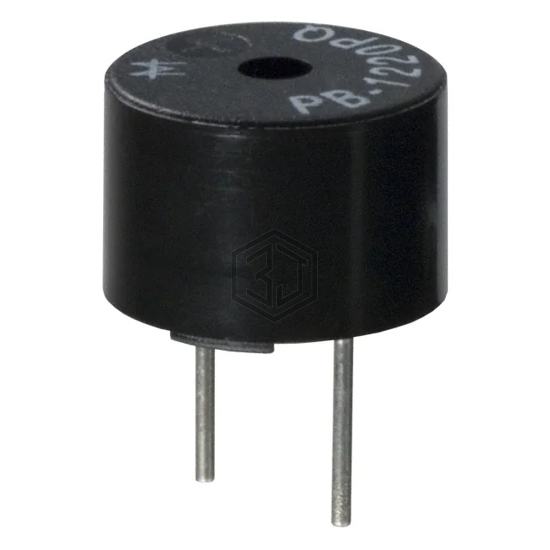

BUZZER MAGNETIC 1.5V 12MM TH
PB-1220PQ is a Alarms, Buzzers, and Sirens manufactured by Mallory Sonalert Products Inc.. BUZZER MAGNETIC 1.5V 12MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C, voltage - rated 1.5 V, current - supply 40mA.
In Stock: 1,091
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | DC |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1.25 ~ 2.5V |
| Frequency | 2.048kHz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 85dB @ 1.5V, 10cm |
| Current - Supply | 40mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.343" (8.70mm) |
Submit your RFQ for PB-1220PQ and get a quote within 24 hours.
