FIXED IND 4.7UH 4.6A 14.1MOHM SM

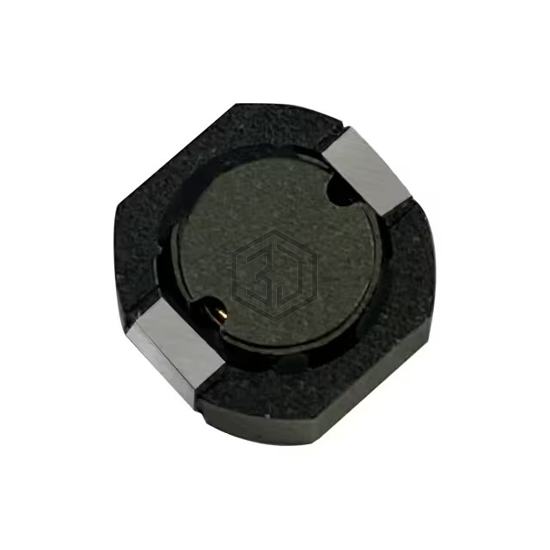

MSCDRI-7040AL-4R7N-RU is a Fixed Inductors manufactured by Mag Layers. FIXED IND 4.7UH 4.6A 14.1MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.6 A.
In Stock: 990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 14.1mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for MSCDRI-7040AL-4R7N-RU and get a quote within 24 hours.
