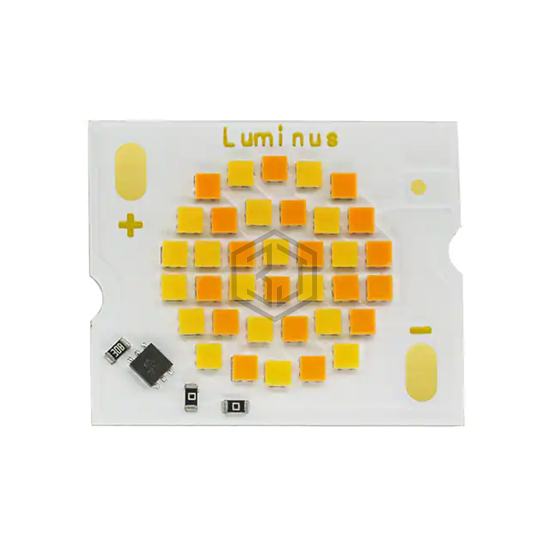

LED COB CDM18 WHITE
CDM-18-4027-90-36-DW02 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. LED COB CDM18 WHITE. Key specifications: voltage - forward (vf) (typ) 35.5V, color White, Warm / White, Neutral, current - max 1.08A, size / dimension 24.00mm L x 20.00mm W.
In Stock: 62
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | LED Module |
| Color | White, Warm / White, Neutral |
| CCT (K) | 2700K ~ 4000K |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 3025lm (Typ) |
| Current - Test | 900mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35.5V |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Current - Max | 1.08A |
| CRI (Color Rendering Index) | 92 |
| Viewing Angle | 130° |
| Features | Dimming - Warm |
| Size / Dimension | 24.00mm L x 20.00mm W |
| Height | 1.58mm |
| Light Emitting Surface (LES) | 16.80mm Dia |
| Lens Type | Flat |
Submit your RFQ for CDM-18-4027-90-36-DW02 and get a quote within 24 hours.
