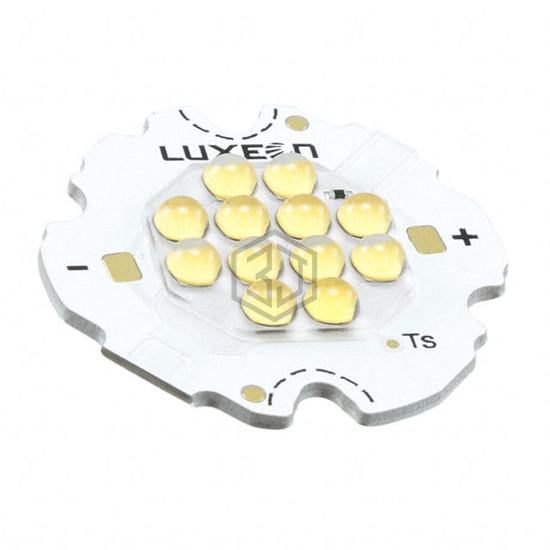

LED MOD LUXEON K WARM WHITE STAR
LXK8-PW27-0024A is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Lumileds. LED MOD LUXEON K WARM WHITE STAR. Key specifications: voltage - forward (vf) (typ) 63V, color White, Warm, current - max 1.05A, size / dimension 30.00mm L x 30.00mm W.
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | LED Module |
| Color | White, Warm |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Starboard |
| Luminous Flux @ Current/Temperature | 2378lm (2230lm ~ 2670lm) |
| Current - Test | 350mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 63V |
| Lumens/Watt @ Current - Test | 108 lm/W |
| Current - Max | 1.05A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 100° |
| Features | - |
| Size / Dimension | 30.00mm L x 30.00mm W |
| Height | 3.42mm |
| Light Emitting Surface (LES) | - |
| Lens Type | Domed |
