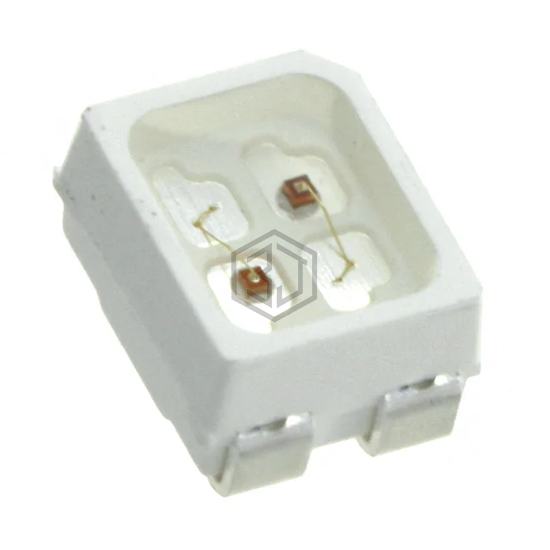

LED GREEN/YELLOW CLEAR 2835 SMD
SML-LX2835YGC-TR is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GREEN/YELLOW CLEAR 2835 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2.1V Yellow, package / case 4-SMD, J-Lead, color Green, Yellow.
In Stock: 272
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 25mcd Green, 15mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.64mm x 2.14mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 585nm Yellow |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 2835 |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.80mm |
Submit your RFQ for SML-LX2835YGC-TR and get a quote within 24 hours.
