LED GREEN/YELLOW CLEAR SMD

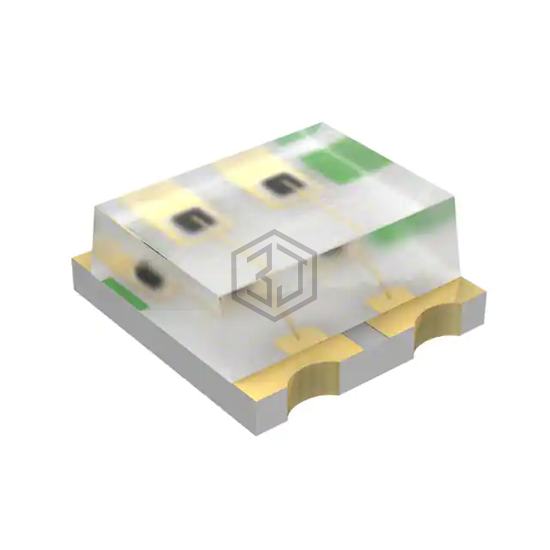

SML-LX0606YGC-TR is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GREEN/YELLOW CLEAR SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2.1V Yellow, package / case 0606 (1616 Metric), color Green, Yellow.
In Stock: 2,759
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 10mcd Green, 10mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 585nm Yellow |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.70mm |
Submit your RFQ for SML-LX0606YGC-TR and get a quote within 24 hours.
