Laird-Signal Integrity Products
FIXED IND 47UH 1.55A 136MOHM SMD

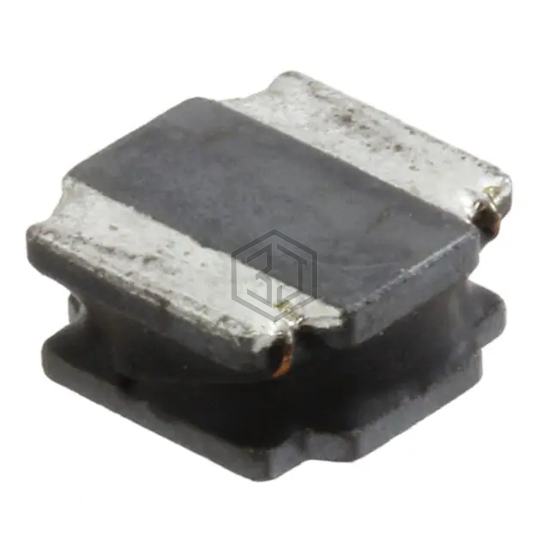

TYS8040470M-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 47UH 1.55A 136MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.55 A.
In Stock: 13,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.55 A |
| Current - Saturation (Isat) | 1.75A |
| Shielding | Shielded |
| DC Resistance (DCR) | 136mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 6.4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
Submit your RFQ for TYS8040470M-10 and get a quote within 24 hours.
