Laird-Signal Integrity Products
FIXED IND 100UH 800MA 433MOHM SM

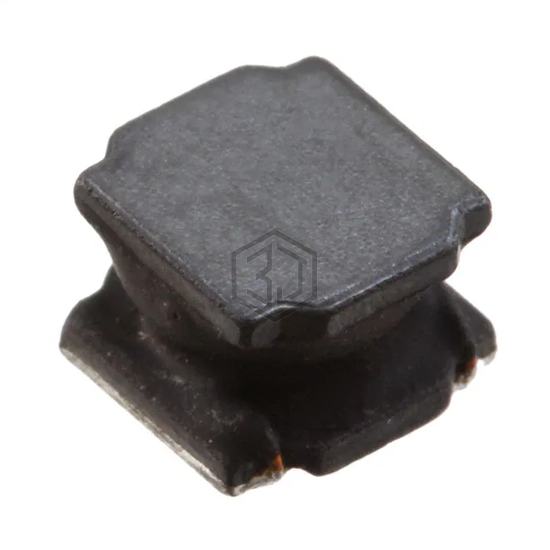

TYS6045101M-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 100UH 800MA 433MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 800 mA.
In Stock: 28,643
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 950mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 433mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.2MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
Submit your RFQ for TYS6045101M-10 and get a quote within 24 hours.
