Laird-Signal Integrity Products
FIXED IND 2.2UH 2.9A 32 MOHM SMD

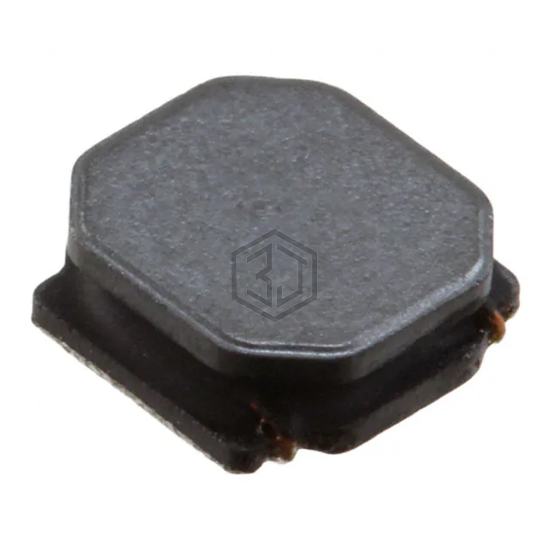

TYS50202R2N-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 2.2UH 2.9A 32 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2020 (5050 Metric), current rating (amps) 2.9 A.
In Stock: 1,545
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.9 A |
| Current - Saturation (Isat) | 3.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 32mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 57MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for TYS50202R2N-10 and get a quote within 24 hours.
