Laird-Signal Integrity Products
FIXED IND 22UH 1A 292.5 MOHM SMD

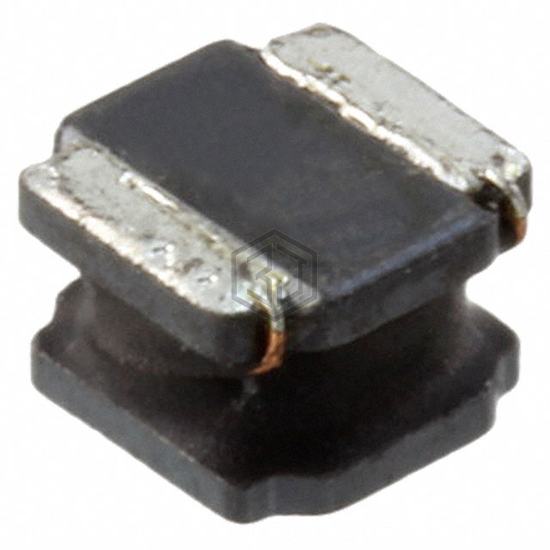

TYS4030220M-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 22UH 1A 292.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1 A.
In Stock: 36,164
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 292.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for TYS4030220M-10 and get a quote within 24 hours.
