Laird-Signal Integrity Products
FIXED IND 33UH 26A 3 MOHM TH

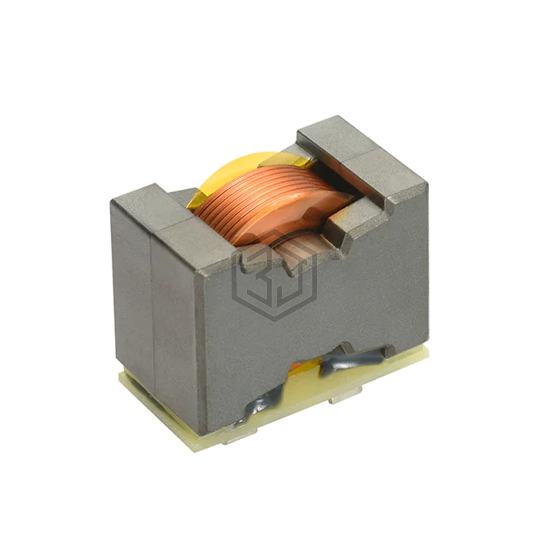

LDZ2817330K-10 is a Fixed Inductors manufactured by Laird-Signal Integrity Products. FIXED IND 33UH 26A 3 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Vertical, 4 Leads (Open), current rating (amps) 26 A.
In Stock: 81
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 26 A |
| Current - Saturation (Isat) | 10.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.063" L x 0.669" W (27.00mm x 17.00mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
Submit your RFQ for LDZ2817330K-10 and get a quote within 24 hours.
