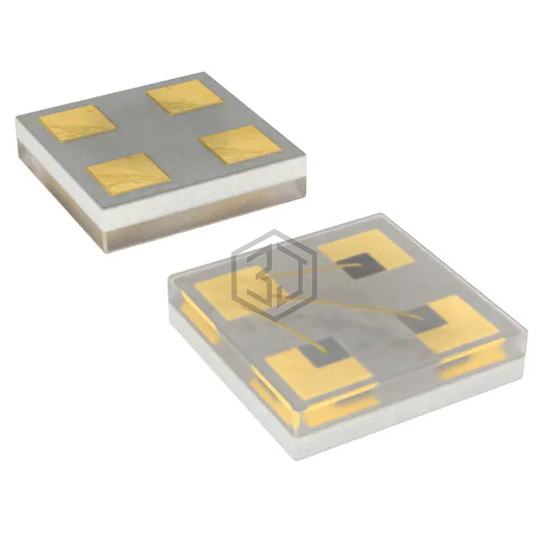

LED RGB CLEAR 4SMD
APGF1011SEEPBVGC-TT is a LED Indication - Discrete manufactured by Kingbright. LED RGB CLEAR 4SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3V Green, 2.9V Blue, package / case 0404 (1010 Metric), color Red, Green, Blue (RGB).
In Stock: 4,033
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 30mcd Red, 80mcd Green, 23mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3V Green, 2.9V Blue |
| Current - Test | 5mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 130° Red, 150° Green, 150° Blue |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 527nm Green, 467nm Blue |
| Wavelength - Peak | 632nm Red, 518nm Green, 461nm Blue |
| Features | - |
| Package / Case | 0404 (1010 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Height (Max) | 0.25mm |
Submit your RFQ for APGF1011SEEPBVGC-TT and get a quote within 24 hours.
