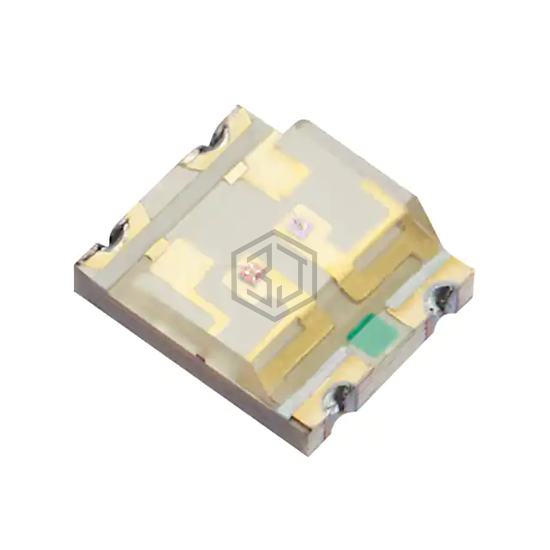

LED GREEN/ORANGE CLEAR SMD
APB3025SEKCGKC-F01 is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/ORANGE CLEAR SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Green, 2.1V Orange, package / case 1210 (3225 Metric), color Green, Orange.
In Stock: 2,869
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Orange |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 60mcd Green, 300mcd Orange |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.50mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Orange |
| Current - Test | 20mA Green, 20mA Orange |
| Viewing Angle | 160° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 605nm Orange |
| Wavelength - Peak | 574nm Green, 610nm Orange |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.10mm |
