FIXED IND 18NH 300MA 450 MOHM

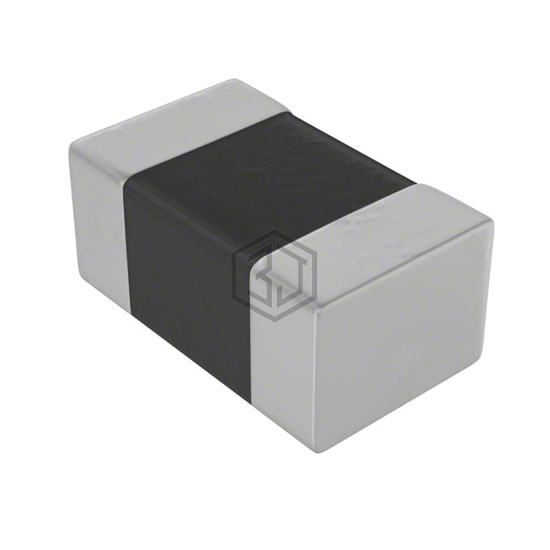

HFI-201209-18NJ is a Fixed Inductors manufactured by Jaro Components Inc.. FIXED IND 18NH 300MA 450 MOHM. Key specifications: mounting type Surface Mount, package / case 0805 (2012 Metric), current rating (amps) 300 mA, size / dimension 0.079" L x 0.047" W (2.00mm x 1.20mm).
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 18 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 450mOhm Max |
| Q @ Freq | 15 @ 100MHz |
| Frequency - Self Resonant | 1.5GHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
Submit your RFQ for HFI-201209-18NJ and get a quote within 24 hours.
