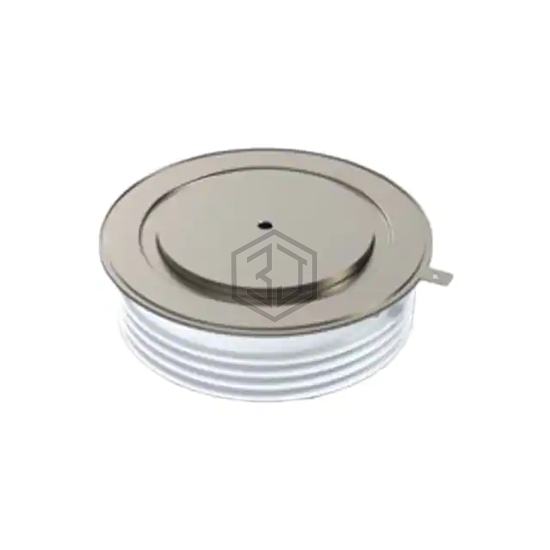

N1467NC260
SCR 2.6KV 2912A W11
N1467NC260 is a Thyristors - SCRs manufactured by IXYS. SCR 2.6KV 2912A W11. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case TO-200AC, K-PUK.
In Stock: 59
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 2.6 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - Gate Trigger (Igt) (Max) | 300 mA |
| Voltage - On State (Vtm) (Max) | 1.69 V |
| Current - On State (It (AV)) (Max) | 1467 A |
| Current - On State (It (RMS)) (Max) | 2912 A |
| Current - Hold (Ih) (Max) | 1 A |
| Current - Off State (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 23.6A @ 50Hz |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Chassis Mount |
| Package / Case | TO-200AC, K-PUK |
| Supplier Device Package | W11 |
Frequently Asked Questions
N1467NC260 is a Thyristors - SCRs manufactured by IXYS. SCR 2.6KV 2912A W11
The mounting type of N1467NC260 is Chassis Mount.
The operating temperature range of N1467NC260 is -40°C ~ 125°C.
The package type of N1467NC260 is TO-200AC, K-PUK.
