1700V/85A HIGH VOLTAGE XPT IGBT

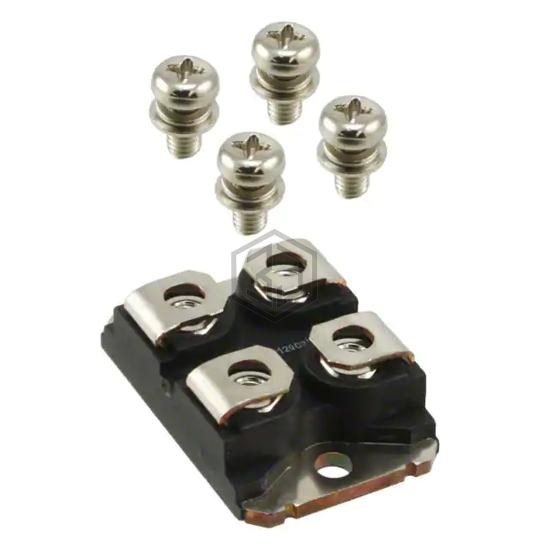

IXYN30N170CV1 is a Transistors - IGBTs - Single manufactured by IXYS. 1700V/85A HIGH VOLTAGE XPT IGBT. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 88 A.
In Stock: 626
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 88 A |
| Current - Collector Pulsed (Icm) | 275 A |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 30A |
| Power - Max | 680 W |
| Switching Energy | 5.9mJ (on), 3.3mJ (off) |
| Input Type | Standard |
| Gate Charge | 140 nC |
| Td (on/off) @ 25°C | 28ns/150ns |
| Test Condition | 850V, 30A, 2.7Ohm, 15V |
| Reverse Recovery Time (trr) | 160 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Submit your RFQ for IXYN30N170CV1 and get a quote within 24 hours.
